Centrifuge

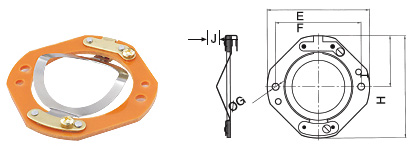

Model	Size				Number of Poles	Frequency
Model	A	B	C	D	Number of Poles	Frequency
TD-2225A	69	70	40	22	2P	50HZ, 60HZ
TD-2725A	69	70	40	27	2P	50HZ, 60HZ
TD-3225A	69	70	40	32	2P	50HZ, 60HZ
TD-2245A	69	70	40	22	4P	50HZ, 60HZ
TD-2755A	69	70	40	27	4P	50HZ, 60HZ
TD-3245A	69	70	40	32	4P	50HZ, 60HZ

Model	Size						Contact	Horsepower	Number of Poles	Frequency
Model	E	F	G	H	I	J	Contact	Horsepower	Number of Poles	Frequency
TD-265B	86	72	6.1	86.4	23.2	13.5	6 silver	1 HP below	2P	50HZ, 60HZ
TD-275B	86	72	6.1	86.4	23.2	13.5	7 silver	2 HP below	2P	50HZ, 60HZ
TD-285B	86	72	6.1	86.4	23.2	13.5	8 silver	3 HP below	2P	50HZ, 60HZ
TD-295B	86	72	6.1	86.4	23.2	13.5	All silver	5 HP below	2P	50HZ, 60HZ
TD-205B	86	72	6.1	86.4	23.2	13.5	Special silver	3 HP below	2P	50HZ, 60HZ
TD-465B	86	72	6.1	86.4	23.2	13.5	6 silver	1 HP below	4P	50HZ, 60HZ
TD-475B	86	72	6.1	86.4	23.2	13.5	7 silver	2 HP below	4P	50HZ, 60HZ
TD-485B	86	72	6.1	86.4	23.2	13.5	8 silver	3 HP below	4P	50HZ, 60HZ
TD-495B	86	72	6.1	86.4	23.2	13.5	All silver	5 HP below	4P	50HZ, 60HZ
TD-405B	86	72	6.1	86.4	23.2	13.5	Special silver	3 HP below	4P	50HZ, 60HZ
